11.Install the print head, connect the cable, check the damper

Step 1： Power off the printer and remove the carriage cover

   Refer to the following video：

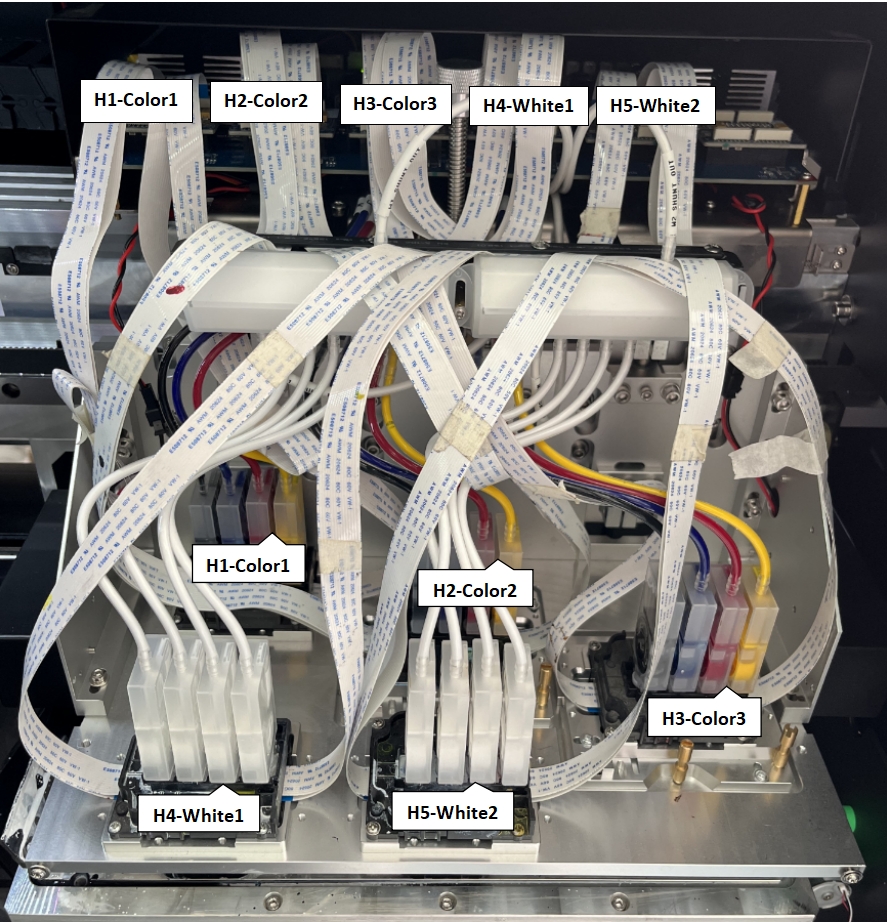

Step 2： Print heads installation, Connect the print head cables to the headboard and install dampers

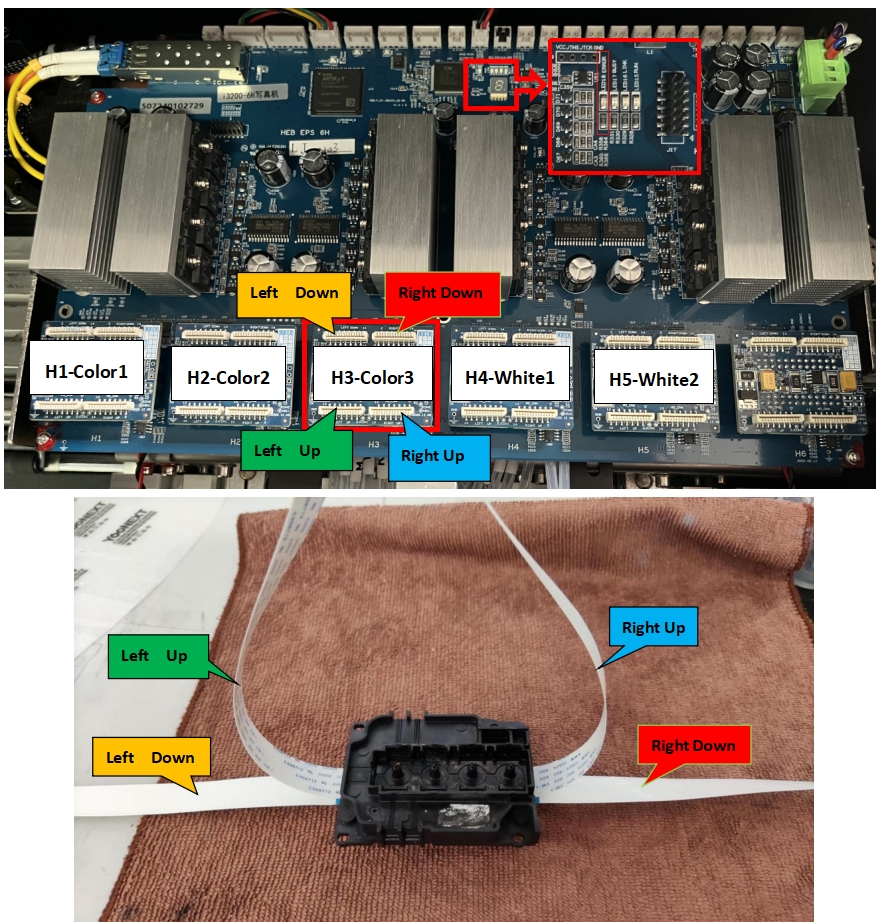

Note the order of print head cables and the order of dampers

Put the print head steadily to the left and back, close to the bottom plate, and install and fix it.

 (Note: Do not fix the print head mounting screws too hard)

 Refer to the following video

After confirming that the print head data line is connected correctly, turn it on, and observe whether the "ERROR" light on the car board is on. If the light is on, it is abnormal. Turn it off immediately and check.
